Waterloo, IQC logos shine bright on a diamond

This article was originally published on the Institute for Quantum Computing's website.

Diamonds are one of the most sought-after and versatile gemstones in the world, with purposes beyond jewelry and drill tips. In quantum research, diamonds are frequently studied because of the presence of special defects called colour centers, which can act as a quantum bit, or qubit, to store information in quantum systems.

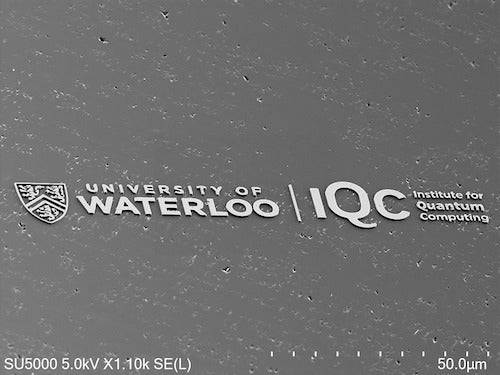

Dr. Mohammad Soltani, a postdoctoral fellow at the Institute for Quantum Computing (IQC) is studying ways to implement patterns in diamonds for quantum applications. Recently, his experiments led to a miniscule but recognizable pattern: IQC’s logo, etched into a 2.5 mm square diamond. The smallest logo produced measured just 20 micrometers — about one fourth the width of a single human hair.

“We’re trying to find optimal conditions and design pattern for the diamond and decrease the amount of photons which get reflected internally instead of exiting the diamond to be measured,” says Soltani. “But I also wanted to do something fun with the fabrication techniques we use.”

IQC’s logo is a unique pattern which helps improve the fabrication processes for Soltani’s diamond samples. By improving these methods, he aims to create a variety of nanostructures on diamond, which could be used to control interactions between photons of light and the diamond’s colour center defects.

Unlike the diamond imperfections to watch out for when jewelry shopping, the defects attractive to the quantum research community give rise to coloured diamonds and are created by replacing just one or two carbon atoms in the diamond structure with other atoms. An important example of these are nitrogen vacancy (NV) centers, in which a carbon atom is replaced by a nitrogen atom, while a neighboring carbon atom’s space is left vacant in the diamond’s crystal structure. NV centers can interact with optical and microwave fields and can be used at room temperature or cooled to cryogenic temperatures, making them an excellent platform for applications in quantum sensing with optical detection, optical quantum memories, and quantum light sources.

Soltani’s diamond logo was fabricated in the Quantum-Nano Fabrication and Characterization Facility (QNFCF) using techniques called electron beam lithography and reactive ion etching, and can be seen with electron microscopes. Since IQC’s researchers typically use silicon wafers in the QNFCF, Soltani needed to create a unique pocket for his small diamond samples. These pockets were etched into a larger silicon wafer that he designed and fabricated specifically for the processing of the tiny diamond samples. He then coated the sample with a material susceptible to electron beam lithography techniques, which were used to pattern the logo at the small scale, similar to a stencil. Once the logo stencil was created, it was filled in with a thin layer of metal to protect the diamond under the logo. The stencil material was then removed, leaving the IQC logo patterned into the metal layer behind. Reactive ion etching was then performed, which removed layers of diamond not protected by the metal mask. When the metal mask was removed, IQC’s logo was left patterned onto the diamond.

In addition to improving the collection of photons emitted by the NV centres, Soltani also plans to use NV centers to convert microwave photons produced by superconducting qubits to optical photons that can be sent over long distances.

Great scientific work is often collaborative, and the diamond IQC logo is no exception. Soltani is supervised by Dr. Michal Bajcsy and Dr. Chris Wilson, IQC faculty members and professors in the Department of Electrical and Computer Engineering. Supratik Sarkar, Vinodh Muthu, Dr. Behrooz Semnani and Abdolreza Pasharavesh also contributed to this work. This research was supported in part by the Canada First Research Excellence Fund through the TQT program at IQC.
